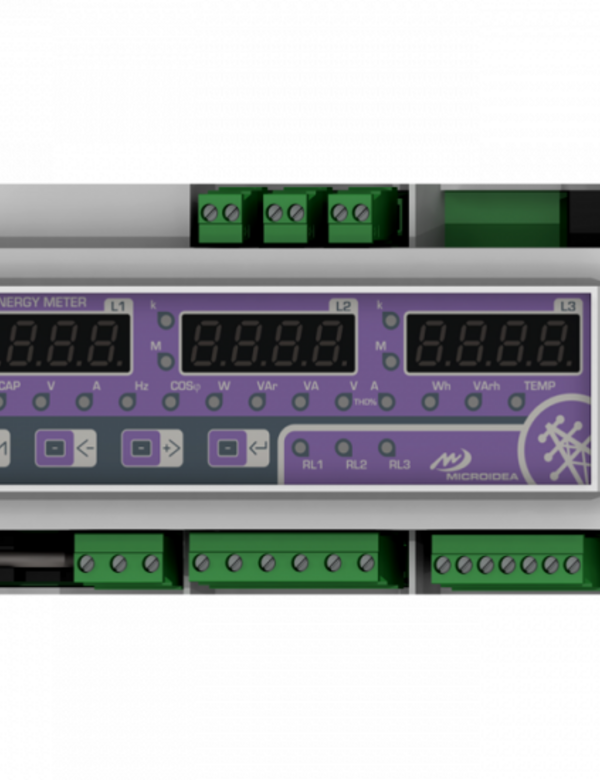

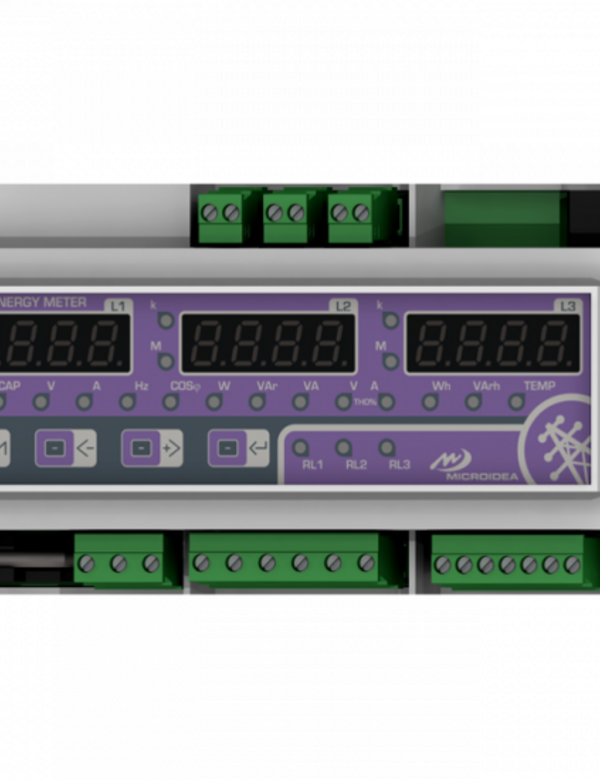

ENERGY METER (DIN) Last-generation DIN rail multimeter in true RMS suitable for the 4.0 industry and for energy monitoring which can be installed in mono or three-phase mode. Equipped with 3 LED displays for measures indication, can display 14 parameters for each phase. The optoisolated TTL output is able to convey countless different measures and so it represents an essential instrument for situations where a comprehensiveness of data is needed, which a regular multimeter cannot provide. It is also equipped with 3 programmable relays which activate depending on alarms conditions that can be set from the user. The signal can be collected by a PLC or a SCADA system. cosΦ in four quadrants harmonic distortion single phase and total Recording of max values of tension, current, harmonic distortion and temperature W-Wh-VA-Vah-Var-Varh Energy measure imported and exported For a complete list of the detectable measures, relate to the datasheet.
