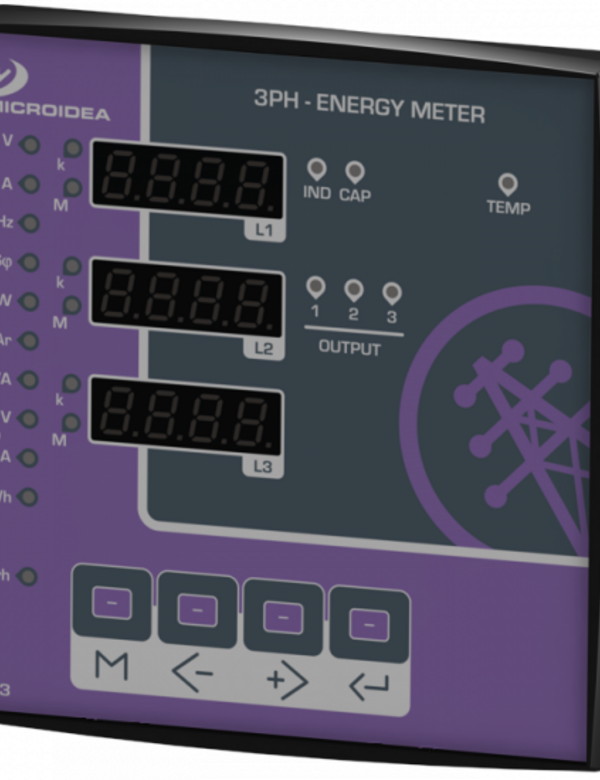

Last-generation panel-mounting multimeter in true RMS suitable for the 4.0 industry and for energy monitoring.
Equipped with 3 LED displays for measures indication, can display 14 parameters at the time.
Equipped with optoisolated ttl output, is able to convey countless different measures and so it represents an essential instrument for situations where a comprehensiveness of data is needed, which a regular multimeter cannot provide.
It is also equipped with 3 programmable relays which activate depending on alarms conditions that can be set from the user. The signal can be collected by a PLC or a SCADA system
Mono or triphase mode installation
cosΦ in four quadrants
harmonic distortion single phase and total
Recording of max values of tension, current, harmonic distortion and temperature
W-Wh-VA-Vah-Var-Varh
Energy measure imported and exported
For a complete list of the detectable measures, relate to the datasheet.
